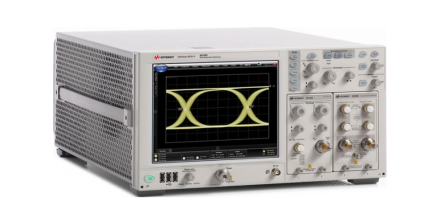

86100D keysight

Optical communication test equipment
• 90 GHz bandwidth
• Custom host for optical, electrical and TDR/S parameter analysis
• Ultra-low jitter of 100 fs RMS and down to 250 μV ensures fast, accurate and consistent jitter measurements
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

N1092E keysight

Optical communication test equipment
• Ultra-fast throughput with sampling rates up to 250 kHz
• Accurate high-speed data analysis with jitter < 200 fs
• Compact design with smaller form factor
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

86105C Keysight

Optical communication test equipment
• 9 GHz amplified optical channel for 9/125 to 62.5/125 fiber
• 20 GHz electrical channel with 3.5 mm male input
• Singlemode and multimode amplification (750 to 1650 nm, SMF and MMF)
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

MP2100B Anritsu

Optical communication test equipment
• All-in-one built-in 4-channel BERT and sampling oscilloscope
• Bit Error Rate (BER) 4-channel simultaneous measurement
• High quality waveform PPG (1 ps rms jitter)
• High input sensitivity (10 mVp-p minimum input sensitivity)
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

8169A Agilent

Optical communication test equipment
• High accuracy and repeatability of the output polarization state: +/-0.09° on Poincar? Sphere
• Low wavelength dependence of the output polarization state: +/- 0.1°/nm on Poincar?
• Polarization extinction ratio >45dB (1530 nm - 1560 nm)
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

8164B Keysight

Optical communication test equipment
• 1 slot for tunable laser source
• 4 slots for power supply module, return loss module, compact tunable laser source or fixed laser source
• Built-in application software: (passive component testing, stability, logging and other functions)
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

86117A keysight

Oscilloscope Module
• Two 50 GHz channels with 2.4 mm (male) connectors
• 50 and 30 GHz bandwidth settings available on each channel
• Test ± 2 VDC maximum output signal
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

428A/438 Bristol

Wavelength meter
• Wavelength measurement accuracy up to ±0.3 pm
• Built-in standard frequency stabilized HeNe laser for continuous calibration
• Measurement confidence level ≥ 99.7 %, NIST traceable
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.
Optical communication test equipment | Megatech- Test and Measurement Technology Services, Inc.

86105C Agilent

Optical communication test equipment
• 9 GHz amplified optical channel for 9/125 to 62.5/125 fiber
• 20 GHz electrical channel with 3.5 mm male input
• Singlemode and multimode amplification (750 to 1650 nm, SMF and MMF)
/
