Network Analyzer

• Amplitude accuracy: ±0.02 dB (after calibration at 23°C ±1°C)
• Phase accuracy: ±0.1° (at 1 GHz reference)
•Trace noise: <0.001 dB RMS (1 kHz IFBW)
•Scan speed: 5 μs/point (full-bandwidth scan <10 ms)
•Number of points: Maximum 16,001 points/channel
•IF bandwidth: 1 Hz to 10 MHz (adaptive anti-aliasing design)

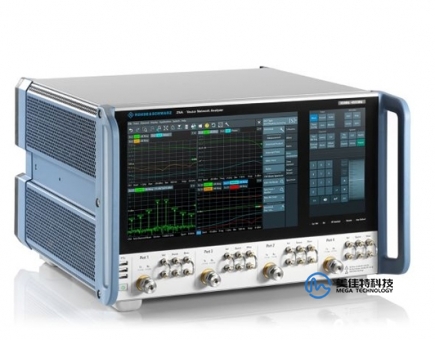

Network Analyzer

• Frequency range: 10 MHz – 8.5 GHz (supports 5G/millimeter wave band extension)
• Dynamic range: 140 dB (typical value, @1 Hz IF bandwidth)
• Measurement accuracy: ±0.01 dB (after calibration, in a constant temperature environment of 23°C ±1°C)
• Trajectory noise: < 0.001 dB RMS (high stability mode)
• Port configuration: 2/4 ports optional (50Ω impedance, N-type connectors standard)

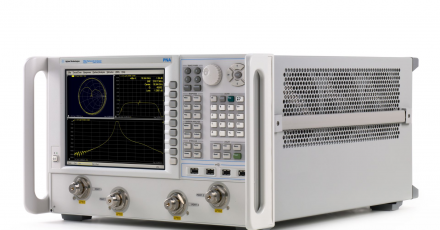

Network Analyzer

• Frequency range: 10 MHz to 40 GHz (supports millimeter wave extension to 110 GHz)
• Dynamic range: 130 dB (typical value, @1 GHz IF bandwidth)
• Measurement accuracy: ±0.1 dB (after calibration, in a constant temperature environment of 23°C ±1°C)
• Phase resolution: 0.01° (vector mode)
• Trace noise: <0.005 dB RMS (1 kHz RBW)

Other

• Power output range: 0 to 105 V / 0 to 1.05 A (DC or pulse mode)
• Power output capacity: Maximum 20 W (continuous mode), 40 W (pulse mode)
• Four-quadrant operation: Supports source/sink bidirectional current (positive and negative voltage and current)
• Voltage measurement range: 0 to 105 V (automatic range)
• Current measurement range: 10nA to 1.05A (7-range automatic switching)

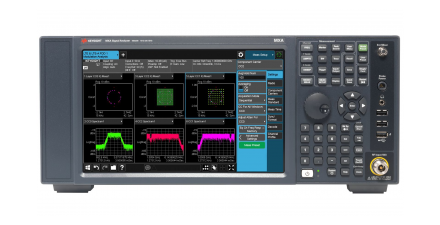

Signal Analyzer

• A comprehensive response to your challenges: Fast and flexible EXA meets different needs with a single tool
• Cost-effective analysis for millimetre wave measurements
• Excellent level accuracy, DANL and TOI for small-signal measurements in large-signal conditions
• List-scan mode for fast discrete frequency point power measurements
• X-Series measurement application software simplifies measurements of: phase noise, noise figure, analogue demodulation, wireless communications and more

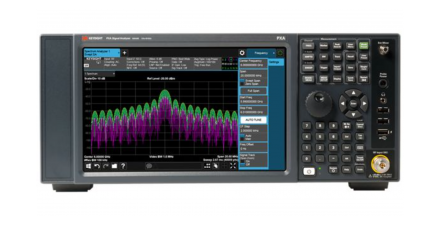

Signal Analyzer

• See more with a wide frequency range of 10 Hz to 44 GHz with up to 40 MHz analysis bandwidth
• Save test time in your spurious response measurements with the fast sweep capability
• Get the most cost-effective analysis for millimeter-wave measurements

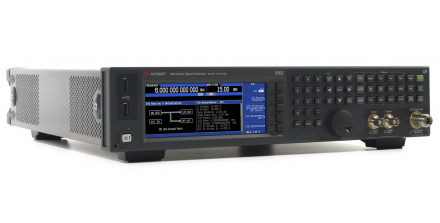

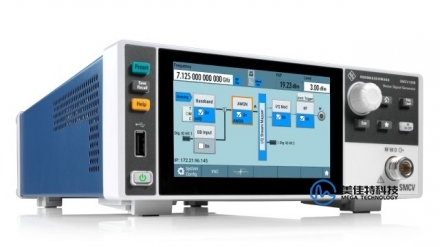

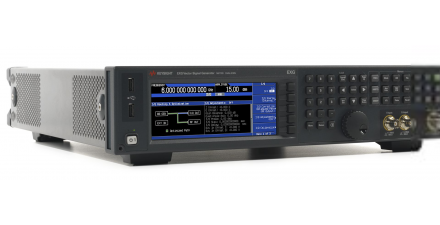

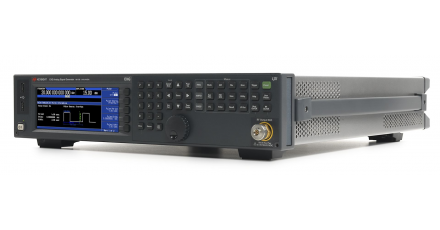

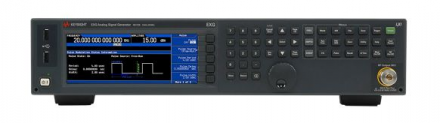

Analog Signal Generator

• Frequency range: 8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50 and 67 GHz (overrange up to 72 GHz)
• SSB phase noise of –132 dBc (typ.) at 10 GHz and 10 kHz offset
• Wideband noise of –162 dBc (meas.) at 10 GHz and 30 MHz offset
• Maximum output power exceeds 30 dBm across wide frequency ranges
• Exceptionally low harmonics

Semiconductor Analysers

• Switch between CV and IV measurements without re-cabling.
• Capture ultra-fast transient phenomena not possible with other conventional test instruments.
• Detect multi-frequency AC capacitance measurements from a range of 1 kHz to 5 MHz.

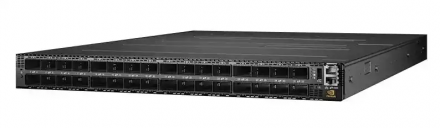

Network Analyzer

• R&D, manufacturing, installation and maintenance of OTN core and metro networks
• Manufacturing, installation and troubleshooting of Carrier Ethernet equipment
• Mobile backhaul network installation and validation
• Installation and validation of mobile backhaul
• Powerful Storage Area Network (SAN) Testing
• Fast and easy SDH/SONET and PDH/DSn network testing
