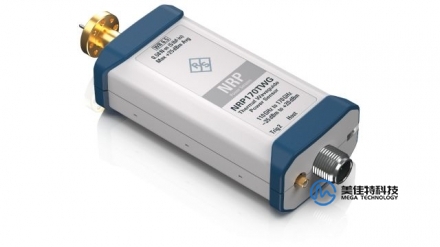

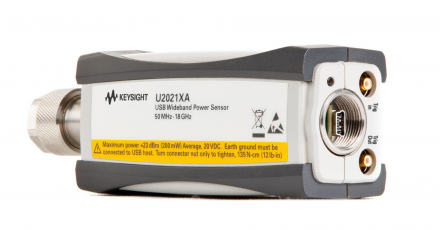

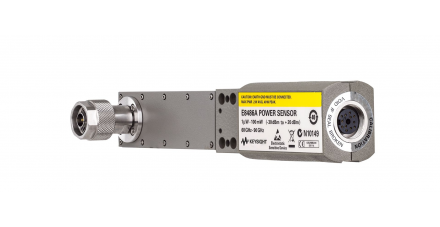

Power Meter

• Frequency range of 9 kHz to 110 GHz (depending on sensor)
• Wide dynamic range of -70 to +44 dBm (depending on sensor)

Power Meter

• Wavelength range: 1250–1650 nm (covering the O/E/S/C/L band single-mode fiber communication window)
• Power measurement range: -70 dBm to +23 dBm (supports automatic/manual range switching)
• Measurement accuracy: ±0.03 dB (typical value, @23°C ±5°C, calibrated wavelength point)
• Resolution: 0.001 dB (high-precision mode) / 0.01 dB (standard mode)
• Detector type: Thermally cooled InGaAs (temperature control accuracy ±0.1°C)
• Connector interface: FC/APC (standard), optional FC/PC/SC/APC/LC
• Calibration wavelength points: 1310/1490/1550/1625 nm (NIST traceable certificate)
• Maximum input power: 500 mW (+27 dBm) with overload protection
• Response time: <10 ms (high-speed mode) / <100 ms (high-stability mode)
• Communication interface: USB 3.0/RS-232/GPIB (compatible with SCPI/LabVIEW drivers)

Power Meter

• ​Wavelength Range: 1250–1650 nm, covering single-mode fiber communication bands
• ​Power Measurement Range: -70 dBm to +23 dBm with auto-ranging capability
• ​Measurement Accuracy: ±0.03 dB (typical), calibrated (at 23°C±5°C)
• ​Resolution: 0.01 dB in high-precision measurement mode
• ​Detector Type: InGaAs (thermoelectrically stabilized)
• ​Connector Interface: FC/APC (standard), optional FC/PC or SC/APC
• ​Calibration Wavelengths: 1310/1490/1550 nm (NIST-traceable)
• ​Maximum Input Power: 500 mW for high-power applications
• ​Response Time: <20 ms in fast measurement mode
• ​Communication Interface: USB/RS-232/GPIB with SCPI remote control

Power Meter

• ​Wavelength Range: 1250–1650 nm, covering single-mode fiber communication bands
• ​Power Measurement Range: -80 dBm to +23 dBm with auto-ranging capability
• ​Measurement Accuracy: ±0.02 dB (typical), calibrated (at 23°C±5°C)
• ​Resolution: 0.001 dB in ultra-high precision mode
• ​Detector Type: InGaAs (thermoelectric cooled design)
• ​Connector Interface: FC/APC (standard), optional FC/PC or SC/APC
• ​Calibration Wavelengths: 1310/1490/1550 nm (NIST-traceable)
• ​Communication Interface: USB/RS-232/GPIB with SCPI remote control
• ​Maximum Input Power: 500 mW for high-power applications
• ​Response Time: <10 ms in fast measurement mode

Power Meter

• ​Wavelength Range: 1250–1650 nm, covering single-mode fiber communication bands
• ​Power Measurement Range: -70 dBm to +20 dBm with auto-ranging capability
• ​Measurement Accuracy: ±0.03 dB (typical), calibrated (at 23°C±5°C)
• ​Resolution: 0.01 dB in high-precision measurement mode
• ​Detector Type: InGaAs (low-noise design)
• ​Connector Interface: FC/APC (standard), optional FC/PC or SC/APC
• ​Calibration Wavelengths: 1310/1490/1550 nm (NIST-traceable)
• ​Communication Interface: USB/RS-232 with SCPI remote control support
• ​Maximum Input Power: 300 mW for high-power test environments
• ​Response Time: <15 ms in fast measurement mode

Power Meter

• Wavelength range: 1250–1650 nm, covering single-mode fiber communication bands
• Power measurement range: -70 dBm to +20 dBm with auto-ranging capability
• Measurement accuracy: ±0.03 dB (typical), calibrated (at 23°C±5°C)
• Resolution: 0.01 dB in high-precision measurement mode
• Detector type: InGaAs (low-noise design)
• Connector interface: FC/APC (standard), optional FC/PC or SC/APC
• Calibration wavelengths: 1310/1490/1550 nm (NIST-traceable)
• Communication interface: USB/RS-232 with SCPI remote control support
• Maximum input power: 300 mW for high-power test environments
• Response time: <15 ms in fast measurement mode

Power Meter

• Wavelength range: 800–1700 nm, covering single-mode and multimode fiber communication bands
• Power measurement range: -80 dBm to +23 dBm with auto-ranging capability
• Measurement accuracy: ±0.02 dB (typical) when calibrated (at 23°C±5°C)
• Resolution: 0.001 dB in high-precision measurement mode
• Detector type: InGaAs (low-noise design)
• Connector interface: FC/PC (standard), optional FC/APC or SC connectors
• Calibration wavelengths: 850/980/1310/1490/1550/1625 nm (NIST-traceable)
• Communication interface: GPIB/USB/LAN with SCPI remote control support
• Typical applications: Optical module production testing, fiber link loss measurement, passive device insertion loss analysis

Power Meter

Power Meter

• Sensor type: InGaAs
• Wavelength range: 800-1700 nm
• Power range: +3 to -90 dBm
• Accuracy: ±2.5% (1000-1650 nm)
