Data Acquisition/Module

• The compact size of the USB digital multimeter eliminates the need for a large, heavy shipping case.
• Wide voltage and current ranges
• BenchVue software license BV0021B included with U2741A

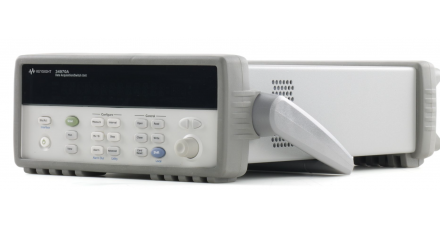

Data Acquisition/Module

- 3-slot mainframe with USB and LAN ports
- 6 1/2-bit (22 bit) built-in digital multimeter that can scan up to 250 channels per second
- 8 plug-in switch and control modules available

DC Power Supply

• Voltage up to 1200V
• Wide range of high voltage or high current models available
• Highly visible vacuum fluorescent display (VFD)
• Switchable ON/OFF control of outputs

DC Power Supply

• 4.3” LCD
• Voltage: 60V, 150V
• Power: 800W, 1500W, wide range output
• Two current ranges, 1μA current resolution
• Linear + switching structure, lower ripple and noise

DC Power Supply

• 1U Half-Rack, Ultra-Compact Size
• Adjustable rising/falling speed of output current, to meet various test applications
• High speed test, up to 10 times per second
• Up to 100 steps LIST operation, support output of various dynamic waveforms
• Support CC/CV loop speed and priority setting
• Parallel operation can be easily controlled by one unit

DC Power Supply

• Adjustable rise/fall time
• Up to 100 steps LIST operation, support output of various dynamic waveforms
• CC/CV loop speed and priority setting

DC Power Supply

• Compact design, power up to 6kW in 1U space, power up to 12kW in 2U space
• Voltage range: 10-1500V
• Current range:-720A~1020A
• Power range:+/-12kW

DC Power Supply

- Stand-alone up to 144kW, expandable in parallel to 1.152MW
- Voltage output range: 0 to 2250V
- Current output range: 0 to 2040A
- High power density, up to 18kW in 3U.

DC Power Supply

- Compact design, 1U@6kW,2U@12kW
- Voltage range:10~1500V
- Current Range:-720A~1020A
- Power range:+12kW
