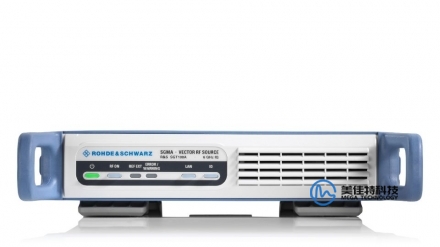

SGS100A R&S

Analog Signal Generator
• One of the smaller fully integrated vector signal generators on the market
• Outstanding RF performance in a space-saving design
• Maximum output level of +22 dBm typical to compensate for device losses
• High output frequency up to 12.75 GHz for broad applicability
• Wear-free electronic attenuator for high reliability
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

SMB100A R&S

Analog Signal Generator
• Frequency range: 100 kHz to 12.75/20/31.8/40 GHz
• SSB phase noise of -108 dBc at 10 GHz, 20 kHz offset (typical)
• Broadband noise of -138 dBc at 10 GHz, 30 MHz offset
• Output power up to +27 dBm (measured)
• Supports analogue modulation such as AM, FM, phase and pulse modulation
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

SMB100B R&S

Analog Signal Generator
• Frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz
• Excellent single-sideband (SSB) phase noise: below -134 dBc at 1 GHz, 20 kHz offset (measured)
• Very low broadband noise: below -153 dBc at 15 MHz < f ≤ 6 GHz, 30 MHz offset (typical)
• Ultra-high output power: 34 dBm at 1 GHz (measured)
• Small and compact, 2 HU, width ¾ 19"
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

R&S®SMBV100B

Analog Signal Generator
• Frequency range from 8 kHz to 3 GHz or 6 GHz
• Ultra-high output power up to +33 dBm
• 1 GHz modulation bandwidth with high accuracy
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

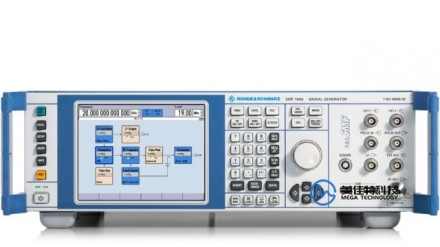

R&S®SMW200A

Analog Signal Generator
• Frequencies up to 67 GHz (dual channel: up to 44 GHz)
• 2 GHz modulation bandwidth
• Integrated fading, up to 800 MHz bandwidth and 8x8 MIMO
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

E4438C Agilent

Analog Signal Generator
• Frequency coverage from 250 kHz to 1,2,3,4,6 GHz
• 160 MHz RF modulation bandwidth with external I/Q input or 80 MHz RF modulation bandwidth with internal baseband generator
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

81250A Keysight

Analog Signal Generator
• 1 GHz (upgradeable)
• 4 analog channels
• 3-in-1 instrumentation: oscilloscope, logic analyzer and protocol analyzer
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

N5183B Keysight

Analog Signal Generator
• Compact (2U) signal generator will replace PSG
• Spectral purity comparable to PSG
• Fast switching of 600 µs reduces calibration time
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.
Analog Signal Generator | Mega- Test and Measurement Technology Services, Inc.

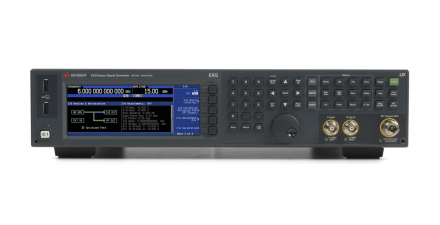

N5181B Keysight

Analog Signal Generator
• Standard phase noise
• Standard output power of +18 dBm
• Electronic attenuator
• 50W reverse power protection
/
