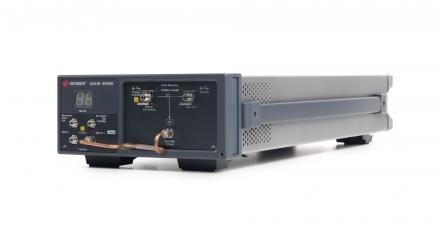

Oscilloscope

• 60 GHz bandwidth (65 GHz typical)
• 2 or 4 channels per module (user selectable)

Oscilloscope

• 60 GHz bandwidth (65 GHz typical)
• 2 or 4 channels per module (optional, upgradeable)
• User selectable 60/45/35/20 GHz bandwidth settings
• Electrical input: 1.85 mm male or female (optional)

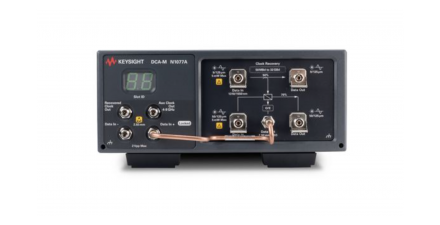

Oscilloscope

• High sensitivity optical channel with < 1 µW noise
• Optical reference receiver meets industry specifications for verification of compliance with standards
• Powerful Flex-DCA interface for comprehensive photoeye diagram analysis

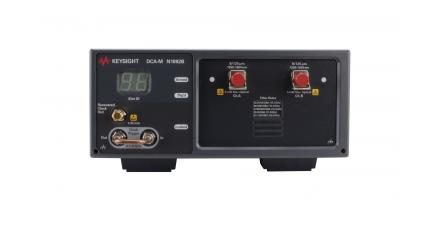

Oscilloscope

• Get breakthrough optical clock recovery performance
• Option 100 with input: single-ended or differential, 3.5 mm (male) connector
• Output: single-ended or differential, 3.5 mm (male) connector; minimum electrical input level: 75 mVpp

Oscilloscope

• Input: single-ended or differential, 3.5 mm (male) connector
• Output (option 100 only): Single-ended or differential, 3.5 mm (male) connector
• Minimum input level: 75 mVpp

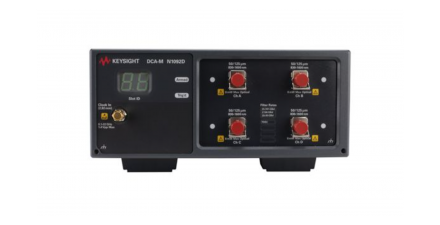

Oscilloscope

• Continuous data rate: 9.953 Gb/s to 11.32 Gb/s
• Wavelength range: 750-860 nm or 1000-1600 nm
• Both optical and electrical inputs available
• Loop bandwidth compliant with 10 Gb Ethernet IEEE 802.3ae standard

Oscilloscope

• Data triggering with slower or non-standard rates
• Reply clock and regenerative data electrical output

Oscilloscope

• Optical clock recovery for 9/125 fiber
• Wavelength range: 1200-1600 nm
• Data rate: 0.155/0.622/1.250/2.488/2.500 Gb/s
• PLL bandwidth: 50 to 70 kHz (internally triggered), 4 to 5 MHz (external output)
• Input power: -20 to +3 dBm

Oscilloscope

• CSA 8000 sampling oscilloscope compatible
