FSVR R&S
Spectrum Analyzer
• Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz
• 40 MHz real-time analysis bandwidth
• Trigger frequency template
• 40 MHz real-time analysis bandwidth
• Trigger frequency template
FPS R&S
Spectrum Analyzer
• Frequency range up to 4/7/13.6/30/40 GHz
• Up to 160 MHz signal analysis bandwidth
• 0.4 dB level measurement uncertainty (up to 7 GHz)
• GSM/EDGE (including EDGE Evolution)
• Up to 160 MHz signal analysis bandwidth
• 0.4 dB level measurement uncertainty (up to 7 GHz)
• GSM/EDGE (including EDGE Evolution)
FSVA3000 R&S
Spectrum Analyzer
• Frequency range from 2 Hz to 4/7.5/13.6/30/44/50/54 GHz
• Analysis bandwidth up to 1 GHz
• SSB phase noise at 10 kHz offset (1 GHz): -127 dBc/Hz
• Multi-touch GUI, SCPI logger, and event-based operation support
• Multiple analogue and digital signal analysis options, including 5G NR signal analysis
• Analysis bandwidth up to 1 GHz
• SSB phase noise at 10 kHz offset (1 GHz): -127 dBc/Hz
• Multi-touch GUI, SCPI logger, and event-based operation support
• Multiple analogue and digital signal analysis options, including 5G NR signal analysis

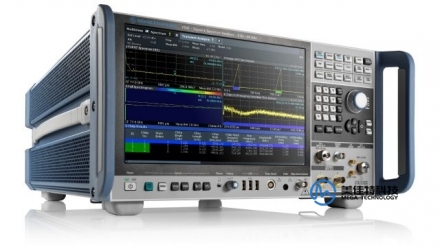

FSW R&S
Spectrum Analyzer
• Superior phase noise and sensitivity on the market
• 8.3 GHz internal analysis bandwidth
• 800 MHz real-time analysis bandwidth
• SCPI logger simplifies code generation
• High dynamic range for excellent EVM performance
• 8.3 GHz internal analysis bandwidth
• 800 MHz real-time analysis bandwidth
• SCPI logger simplifies code generation
• High dynamic range for excellent EVM performance

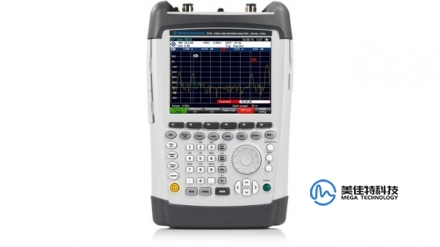

ZNH R&S
Network Analyzer
• Frequency range from 30 kHz to 4/8/18/26.5 GHz
• Base instrument performs single-port cable and antenna measurements
• Base instrument performs S-parameter (S11, S12, S21, S22) measurements
• 100 dB (typical) dynamic range for filter and antenna isolation measurements
• Anti-reflective display, small form factor, rugged enclosure (IP51)
• Base instrument performs single-port cable and antenna measurements
• Base instrument performs S-parameter (S11, S12, S21, S22) measurements
• 100 dB (typical) dynamic range for filter and antenna isolation measurements
• Anti-reflective display, small form factor, rugged enclosure (IP51)

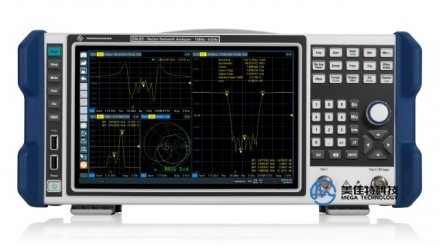

ZNL R&S
Network Analyzer
• Wide frequency range from 5 kHz to 20 GHz
• Optional spectrum analysis and power probe support available up to 26.5 GHz
• Continuous wave signal generator spectrum analysis option
• Cost-effective, portable (battery-powered option), accurate, versatile
• Optional spectrum analysis and power probe support available up to 26.5 GHz
• Continuous wave signal generator spectrum analysis option
• Cost-effective, portable (battery-powered option), accurate, versatile
ZNB R&S
Network Analyzer
• Frequency range from 9 kHz to 43.5 GHz
• Two or four ports
• Wide dynamic range up to 140 dB
• Short scan time, 401 points in 4 ms
• Wide power sweep range of 98 dB
• Two or four ports
• Wide dynamic range up to 140 dB
• Short scan time, 401 points in 4 ms
• Wide power sweep range of 98 dB
ZNBT R&S
Network Analyzer
• Frequency range: 9 kHz to 8.5 GHz, or 100 kHz to 20/26.5/40 GHz
• Up to 24 ports with full phase reference receivers
• Up to 140 dB dynamic range
• Scan times as short as 1.7 ms (R&S®ZNBT8) and 2.7 ms (other models)
• Up to 24 ports with full phase reference receivers
• Up to 140 dB dynamic range
• Scan times as short as 1.7 ms (R&S®ZNBT8) and 2.7 ms (other models)
ZVA R&S
Network Analyzer
• System frequency range: 10 MHz to 110 GHz
• Dynamic range up to 130 dB (typical)
• Two test ports, 1.0 mm positive
• R&S®ZVA67 base unit can be used as a stand-alone unit
• Dynamic range up to 130 dB (typical)
• Two test ports, 1.0 mm positive
• R&S®ZVA67 base unit can be used as a stand-alone unit
