Signal Analyzer

• View more complex signals with a broader (up to 1 GHz), deeper view
• Measure the spectral purity of your design with ultra-low phase noise and spurious-free dynamic range of up to 78 dBc over a 510 MHz bandwidth

Signal Analyzer

• Continuous 30 Hz to 13.2 GHz scanning
• Resolution bandwidth of 1 to 100 Hz digitally implemented for faster measurements
• Low phase noise and wide dynamic range

Spectrum Analyzer

• Continuous 30 Hz to 13.2 GHz scanning
• Resolution bandwidth of 1 to 100 Hz digitally implemented to increase measurement speed
• Low phase noise and wide dynamic range

Spectrum Analyzer

• Test Manager enables automatic execution of up to 20 predefined measurements, reducing test setup time by 95%
• Supports industry-standard SCPI language and provides USB and LAN connectivity
• 6.5-inch TFT color display with multilingual user interface

Network Analyzer

• 100 kHz to 1.5 GHz/3 GHz
• 2-Port, 50 or 75 Ω.
• Transmission/reflection or S-parameter tester

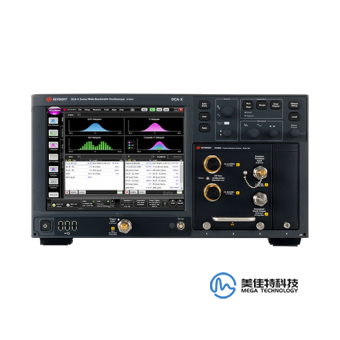

Radio Frequency Equipment

• Excellent margins due to excellent instrument performance: bandwidth > 90 GHz, residual jitter down to 45 fs, adjustable clock recovery peak and loop bandwidth
• Analysis tools such as jitter spectrum analysis and software clock recovery simulation accelerate verification

Network Analyzer

• Wide frequency range, from 5 kHz to 20 GHz
• 6 GHz models offer optional spectrum analysis and power probe support
• Continuous wave generator spectral analysis option

Network Analyzer

• 100 kHz to 4.5 GHz unidirectional dual-port vector network analyzer
• Frequency range extends to 8.5 GHz
• Test set can be expanded for bi-directional measurements

Network Analyzer

• Frequency range from 9 kHz to 3 GHz
• Up to 130 dB dynamic range
• Short scan time: 11 ms (401 scan points)
