80C11B
Oscilloscope
The 80C11B module is a wide-wavelength (1100 - 1650 nm), multirate optical interface sampling module optimized for testing 10 Gb/s datacom and telecom standard rates of 9.953, 10.3125, 10.51875, 10.664, 10.709, 11.0957, 11.317 Gb/s, 12.50, and 14.025 Gb/s. modules. With a high optical bandwidth of up to 30 GHz (typical), it is particularly well suited for general-purpose, high-performance 10 Gb/s optical device testing.
N1046A
Oscilloscope
The N1046A Remote Sampling Head is a module for use with the N1000A DCA-X mainframe. Like all DCA modules from Isotek, the N1046A offers a wide range of configuration and performance options to fit your oscilloscope solution, whether it's bandwidth, channel count, or features.
• 75, 85, or >100 GHz maximum bandwidth (upgradeable)
• 1, 2 or 4 channels per module (user selectable)
• Large bandwidth and low-noise sampler for analyzing 224 Gb/s high-speed signals
• Electrical input: 1 mm negative (1.0 negative to 1.85 negative adapter included), 250 kSa/s sampling rate
• 75, 85, or >100 GHz maximum bandwidth (upgradeable)
• 1, 2 or 4 channels per module (user selectable)
• Large bandwidth and low-noise sampler for analyzing 224 Gb/s high-speed signals
• Electrical input: 1 mm negative (1.0 negative to 1.85 negative adapter included), 250 kSa/s sampling rate

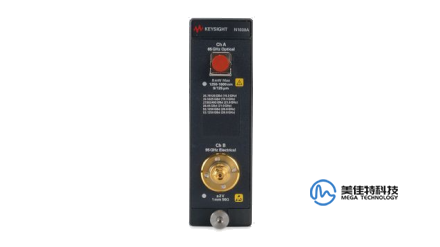

N1030A
Oscilloscope
• One 65 GHz optical channel
• Optional electrical channels with selectable bandwidth settings (33/40/50/70/85/95 GHz)
• Ultra-low jitter down to 90 fs
• Supports analysis of optical signals >53 GBd and 112 GBd (224 Gbps) TDECQ
• Pulse response correction available on all channels (optical and electrical)
• Future-proof investment: Compatible with N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) mainframes
• Optional electrical channels with selectable bandwidth settings (33/40/50/70/85/95 GHz)
• Ultra-low jitter down to 90 fs
• Supports analysis of optical signals >53 GBd and 112 GBd (224 Gbps) TDECQ
• Pulse response correction available on all channels (optical and electrical)
• Future-proof investment: Compatible with N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) mainframes
Power Meter
6362C Ceyear
Optical Spectral Analyzer
- 350nm~1200nm wide spectral scanning range
- ±0.05nm wavelength accuracy
- 10pm minimum spectral resolution
- 60dB large dynamic range
- ±0.05nm wavelength accuracy
- 10pm minimum spectral resolution
- 60dB large dynamic range
34972A keysight
Data Acquisition/Module
- 3-slot mainframe with USB and LAN ports
- 6 1/2-bit (22 bit) built-in digital multimeter that can scan up to 250 channels per second
- 8 plug-in switch and control modules available
- 6 1/2-bit (22 bit) built-in digital multimeter that can scan up to 250 channels per second
- 8 plug-in switch and control modules available
Santec TSL-770
Tunable Laser System Source
- 200nm/s fast scanning
- Line width < 60kHz
- < 1/10 frequency fluctuation (vs. conventional models)
- Line width < 60kHz
- < 1/10 frequency fluctuation (vs. conventional models)
AQ6380 YOKOGAWA
Optical Spectral Analyzer
- Wavelength range: 1200 - 1650 nm
- High wavelength resolution: 5pm
- High wavelength accuracy: ±5pm
- Dynamic range: 65dB
- High stray light rejection ratio: 80dB
- High wavelength resolution: 5pm
- High wavelength accuracy: ±5pm
- Dynamic range: 65dB
- High stray light rejection ratio: 80dB
AQ6373E Yokogawa
Optical Spectral Analyzer
• Three available models for short wavelength range applications: Standard, High Resolution, Limited
• Wavelength Range: 350 - 1200 nm (all models)
• Max Safe Input Power: +20 dBm (550 to 1100 nm) +10 dBm (400 to 550 nm) (total input power)
• Wavelength Range: 350 - 1200 nm (all models)
• Max Safe Input Power: +20 dBm (550 to 1100 nm) +10 dBm (400 to 550 nm) (total input power)
