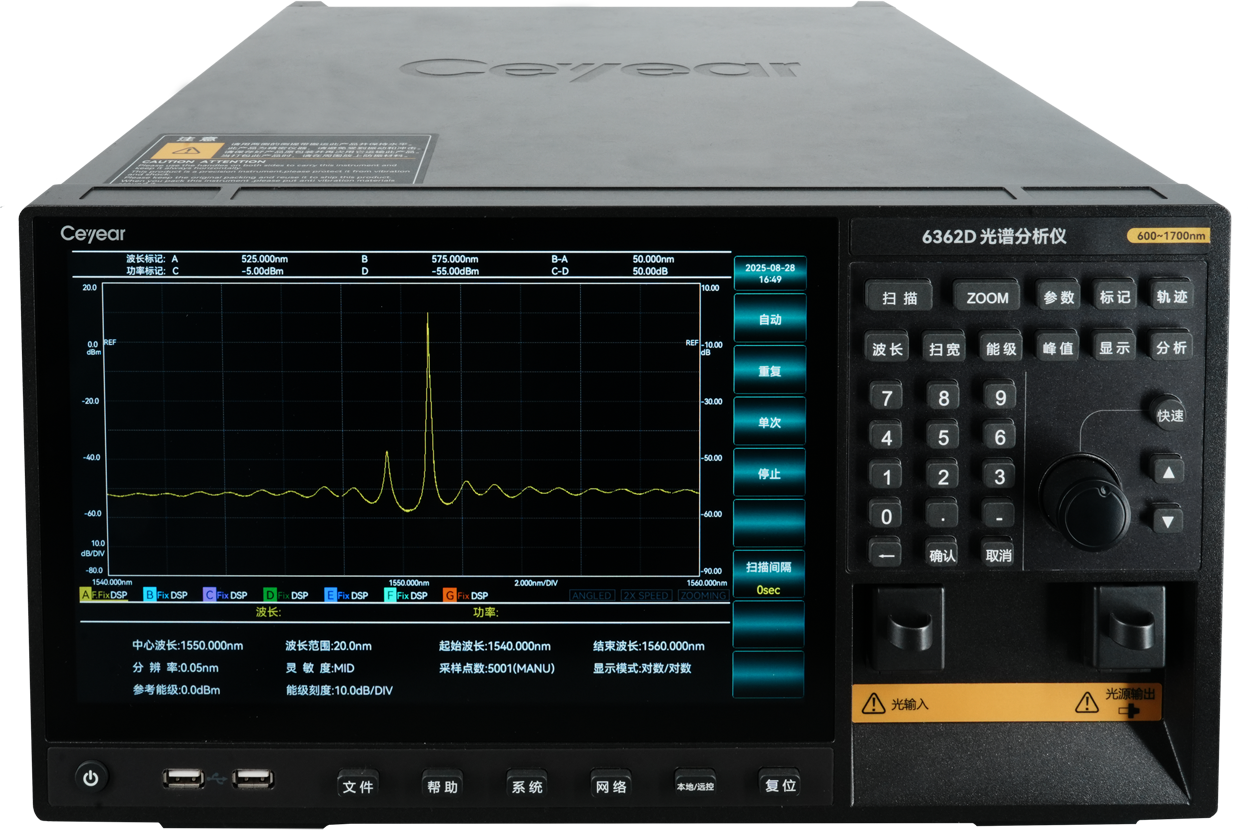

6362D Spectrum Analyzer (short: Spectrum Analyzer) is a high-resolution, large dynamic high-speed and high-performance spectrum analyzer, applicable to the 600 ~ 1700nm spectral range of DWDM, optical amplifiers and other optical system testing; LED, FP-LD, DFB-LD, optical transceivers, and other optical active device testing; optical fibre, optical grating and other optical passive device testing.
● 20pm minimum spectral resolution
● 600 ~ 1700nm spectral scanning range
● 78dB large dynamic range
● -90dBm maximum sensitivity
● Support spatial light input
● Built-in light source output configuration is optional
● Powerful multi-application spectral data analysis function
● 12.1-inch touch display, full Chinese operation
The 6362D Spectrum Analyser (Spectrometer) can test and analyse all types of lasers such as LEDs, FP-LDs, DFB-LDs, LD modules and other lasers with a single click, enabling batch processing of all test items.
In addition to semiconductor laser light source spectral measurement applications, the instrument also integrates optical fibre polarization mode dispersion measurement applications, WDM applications, fiber amplifier applications, WDM filter applications, WDM fiber amplifier applications and other spectral application functions, the following figure is a typical WDM application analysis.
