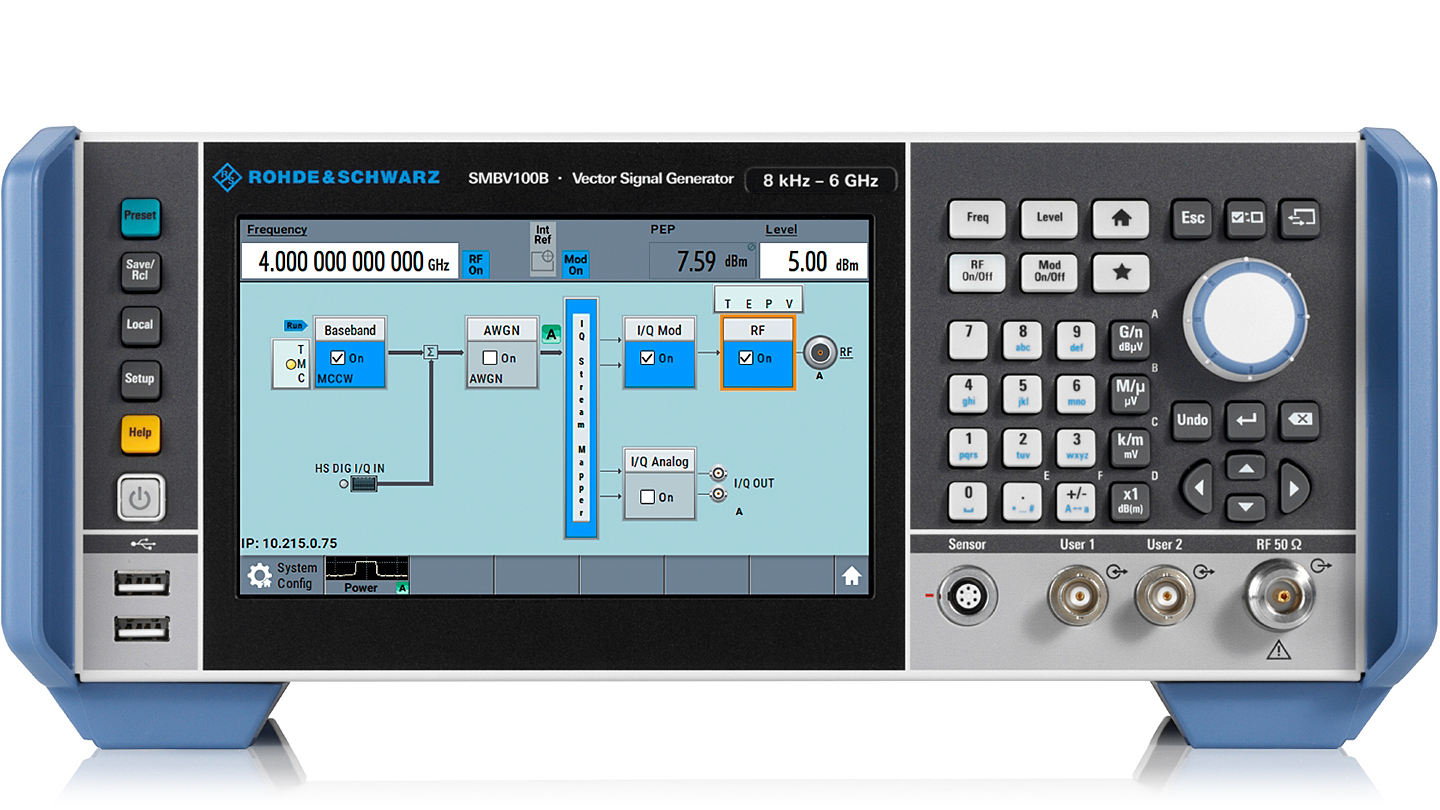

The R&SMBV100B® vector signal generator sets the standard for its class. Ultra-high output power, fully calibrated wideband signal generation and intuitive touch screen operation make the R&S®SMBV100B ideal for a wide range of applications.
Always compliant with the latest major digital communication standards such as 5G NR, LTE and WLAN, the SMBV100B is the test solution of choice for receiver and component verification.
With many GNSS options, the R&SMBV100B® transforms the instrument into a reliable, full-featured general-purpose GNSS simulator. Advanced simulation features allow for realistic, complex but repeatable GNSS scenarios to be run under controlled conditions.
The perfect choice for signal quality
Excellent EVM performance of 0.2% for 20 MHz LTE signals, even at high output power levels
Impressive ACPR values, < -72 dB AC (WCDMA test model 1, 64 DPCH, measured)
Extremely low SSB phase noise of < -134 dBc (measured) at 1 GHz and 20 kHz offset.
Real-time compensation for test fixture effects.
Perfect power supply (ultra-high output power and excellent level accuracy)
When equipped with the appropriate options, the R&SMBV100B® can produce output power up to +34 dBm (measured at 1 GHz) and the specified level increases to +25 dBm over almost the entire frequency range.
After calibration, the generator must set the level value repeatedly and precisely for each test sequence. Here, the R&SMBV100B® offers top performance with a measured level repeatability of < 0.09 dB.
Ideal for GNSS simulations
The R&SMBV100B® features several GNSS options to convert the instrument into a reliable, full-featured GNSS simulator. Advanced simulation features allow for realistic, complex but repeatable GNSS scenarios to be run under controlled conditions. This includes realistic modeling of GNSS orbits, signal propagation effects and system errors, as well as realistic modeling of the user environment.
