ESRP Rod Test Receiver

Main features：

• Wavelength range: 1260-1620 nm (covering O/E/S/C/L band extended applications)
• Dynamic range: -80 dBm to +26 dBm (automatic range + manual overrange mode)
• Absolute accuracy: ±0.02 dB @ 1550 nm (23°C ±1°C temperature-controlled environment)
• Resolution: 0.001 dB (high-precision mode) / 0.01 dB (standard mode)
• Detector technology: Thermally cooled InGaAs (temperature control accuracy ±0.1°C)

Consultation

Position: Home

Products

ESRP Rod Test Receiver

Overview

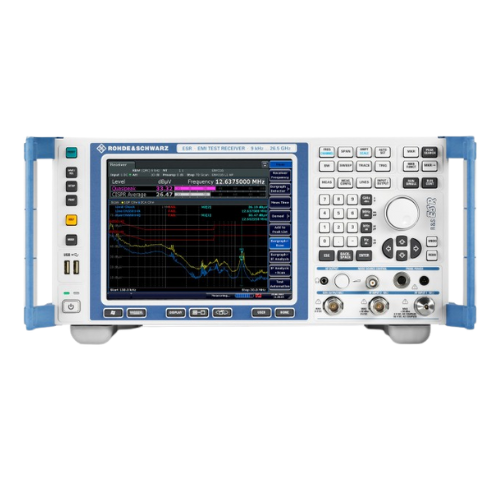

Rohde & Schwarz ESRP Test Receiver Technical Specifications

1. Product Overview

The Rohde & Schwarz ESRP series test receiver is a professional-grade electromagnetic compatibility (EMI) testing instrument designed for certification-level EMI testing requirements. The product complies with CISPR 16-1-1 and MIL-STD-461 standards.

2. Key Specifications

2.1 Frequency Characteristics

Parameter	Specification
Frequency Range	9 kHz - 7 GHz
Resolution Bandwidth	200 Hz - 10 MHz
Frequency Step	1 Hz
Frequency Stability	±0.1 ppm/°C

2.2 Measurement Performance

Parameter	Specification
Dynamic Range	130 dB
Noise Floor	-152 dBm
Maximum Input Level	+35 dBm
Sweep Speed	75 GHz/s

3. System Features

3.1 Hardware Configuration

Component	Specification
Input Interface	N-type female
Display	15.6" touchscreen
Data Interfaces	10G Ethernet, USB 3.1
Internal Storage	512 GB SSD

3.2 Measurement Capabilities

Function	Description
Peak Hold	Supported
Quasi-Peak Detection	Supported
Average Detection	Supported
Time Domain Scan	Supported

4. Application Fields

4.1 Certification Testing

Medical equipment EMC certification
Information technology equipment certification

4.2 Automotive Electronics

Complete vehicle EMI testing
Automotive electronic module verification

4.3 Military Products

Military equipment EMC testing
Shipboard electronic system evaluation

5. Optional Configurations

Option Code	Function Description
ESRP-K1	Military standard test package
ESRP-K2	Automotive electronics test package
ESRP-K3	Medical equipment test package

6. System Integration

Supporting Equipment	Recommended Model
Test Antenna	HFH2-Z2E
Preamplifier	ESRP-PA
Test Software	EMC32-P
