KEITHLEY 2601B-PULSE Digital Source Meter

2601B-PULSE Keithley Digital SourceMeter® Detailed Introduction

Product Overview

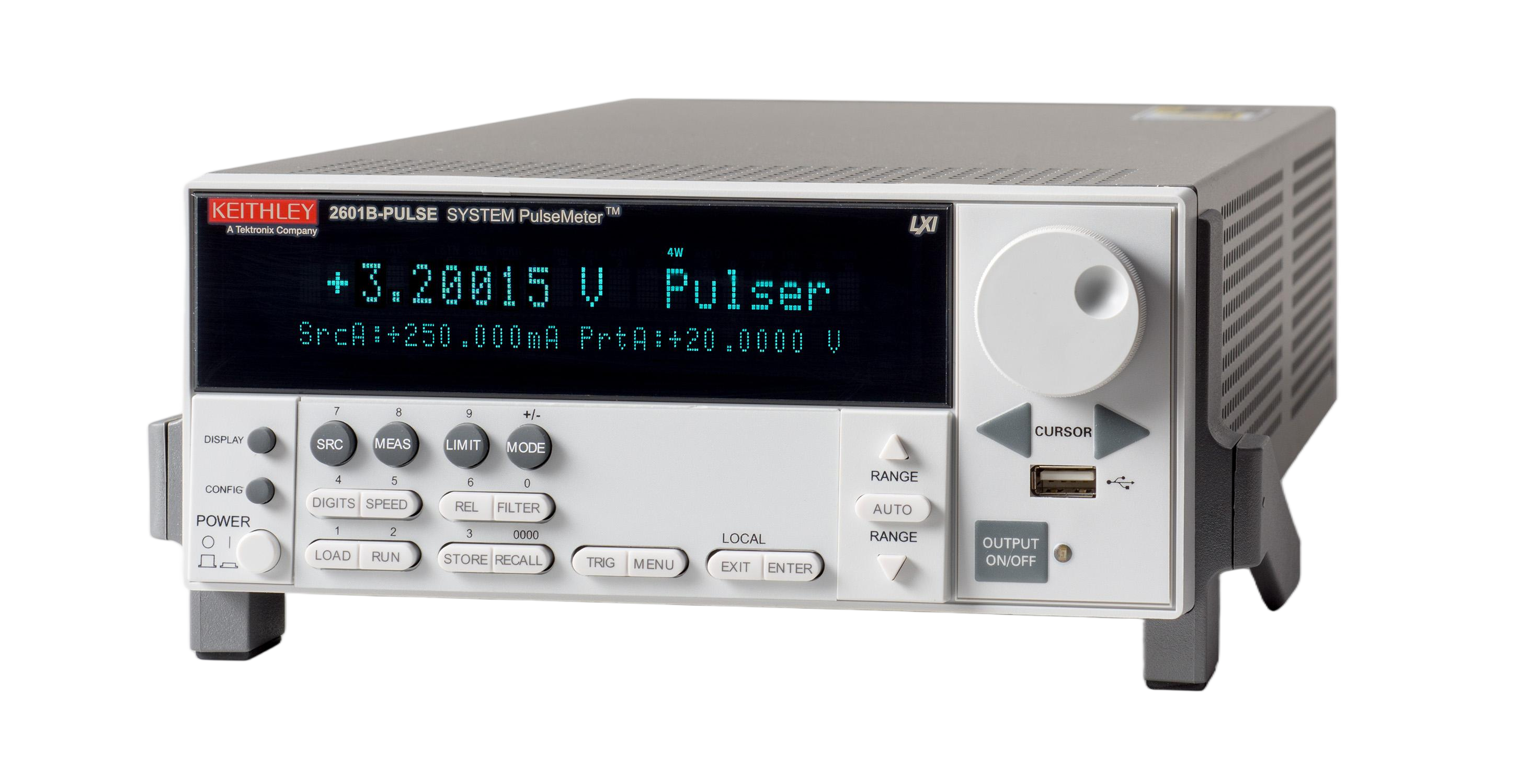

The 2601B-PULSE is a high-performance pulsed digital SourceMeter® developed by Keithley, specifically designed for high-speed, high-precision semiconductor device testing. This instrument combines the functions of a precision power supply, measurement instrument, and pulse generator, making it particularly suitable for dynamic characterization of power devices, RF components, and advanced semiconductor materials.

Key Features

1. High-Speed Pulsed Testing Capability

• Minimum pulse width: 50μs

• Rise/Fall time: <1μs

2. Wide Output Ranges

• Pulsed voltage range: ±40V

• Pulsed current range: ±10A (peak)

3. Four-Quadrant Operation

• Supports both source and sink modes to simulate real operating conditions

4. High-Precision Measurement

• Voltage measurement resolution: 1μV

• Current measurement resolution: 10nA

Technical Specifications

Typical Applications

• Dynamic characterization of power MOSFETs

• Switching characteristics analysis of GaN/GaAs devices

• RF power amplifier testing

• Advanced memory device testing

Product Advantages

• Industry-leading pulsed testing capability

• Precise control of pulse parameters (width, period, duty cycle)

• Real-time measurement of pulse response characteristics

• Comprehensive protection mechanisms
