2430 KEITHLEY Digital Source Meter

Main features：

• Current Output Range: 10 pA to 1 A (±1% of setting + 2 nA)
• Voltage Output Range: 100 μV to 200 V (±0.1% of setting + 2 mV)
• Wavelength Compatibility: 1250–1650 nm (supports external optical module calibration)
• Optical Power Measurement: -70 dBm to +23 dBm (requires InGaAs detector option)
• Four-Quadrant Operation: Supports source/sink bidirectional current output

Consultation

Position: Home

Products

2430 KEITHLEY Digital Source Meter

Overview

Product Overview

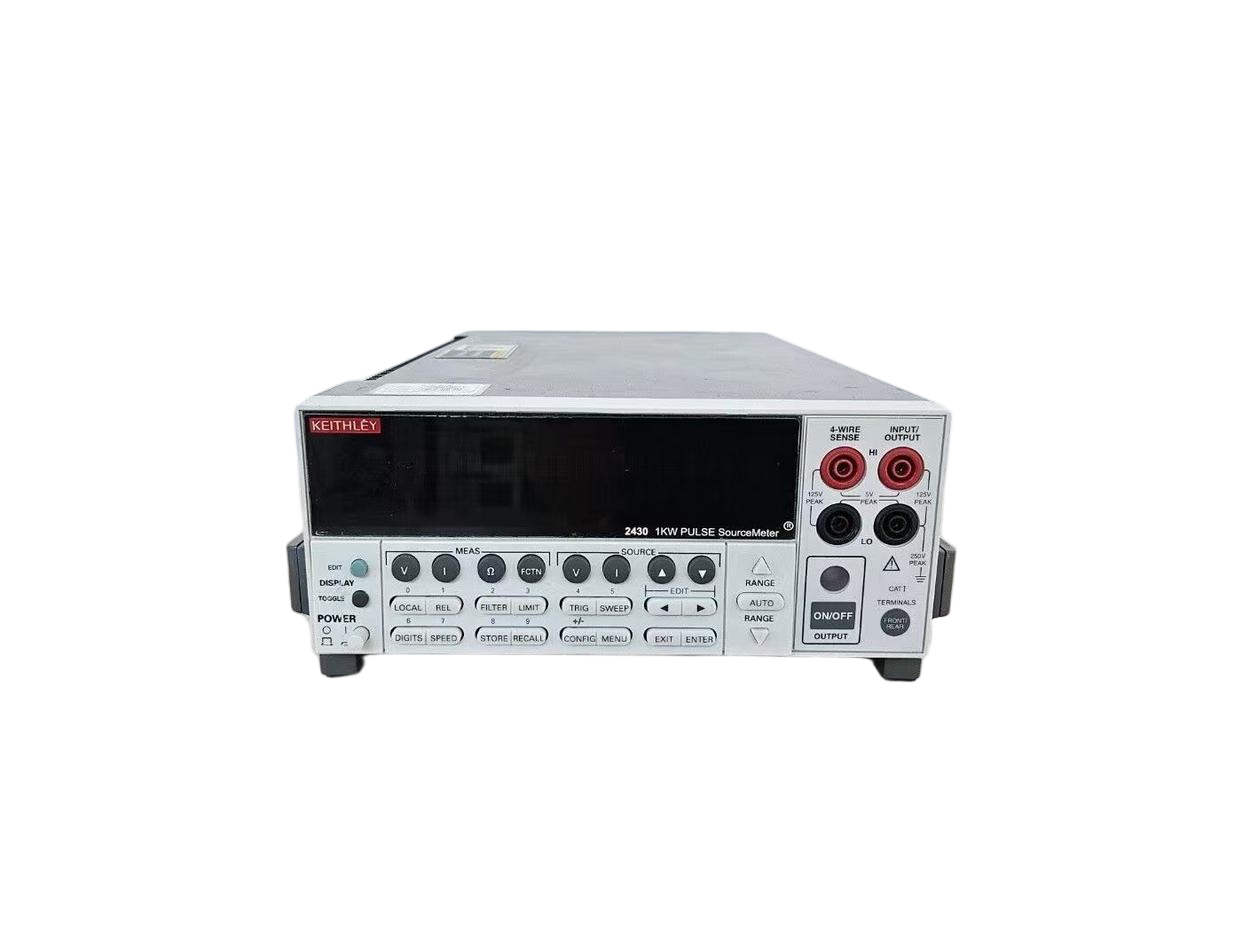

The Keithley 2430 SourceMeter® is a multi-function instrument combining precision power supply, current source, voltage source, electronic load, and measurement capabilities. Designed for semiconductor device testing, material characterization, and sensor calibration, its key features include:

Four-quadrant operation: Capable of both sourcing and sinking current to simulate real-world load conditions
High-precision measurement: Voltage resolution down to 1μV, current resolution to 10pA
Pulse mode: Supports pulse widths as short as 50μs for transient power device testing

Core Features

Integrated Source and Measurement

Simultaneously outputs current/voltage while measuring device parameters (V, I, R)
Auto-ranging eliminates manual range switching errors

Four-Quadrant Operation

Source mode (output positive/negative voltage or current)
Sink mode (absorbs current to emulate electronic loads)

High Accuracy and Low Noise

Voltage accuracy: ±0.05% of setting + 200μV
Current accuracy: ±0.05% of setting + 100nA
Low-noise design: <5μV RMS (1Hz-100kHz bandwidth)

Pulse and Sweep Capabilities

Programmable pulses: 50μs-10s width with adjustable duty cycle
Linear/logarithmic sweeps for automated V/I/R scanning

Automation Control

SCPI command support compatible with LabVIEW/Python
Hardware trigger I/O for multi-device cascaded testing

Technical Specifications

Parameter	Specification
Power Output	0-20V DC, 0-1A DC, max. 20W (continuous)
Four-Quadrant Op.	Supports sourcing/sinking (±20V, ±1A)
Voltage Resolution	1μV (min.), 1mV (standard)
Current Resolution	10pA (min.), 100nA (standard)
Accuracy	Voltage: ±0.05% + 200μV; Current: ±0.05% + 100nA (@23°C±5°C post-calibration)
Pulse Mode	50μs-10s pulse width, adjustable duty cycle
Interfaces	GPIB (IEEE-488.2), USB 2.0, RS-232, optional LAN
Safety Certs.	IEC 61010-1 CAT II 300V, CE/UL/CSA certified
Dimensions/Weight	213×88×350 mm / 3.0 kg

Typical Applications

Semiconductor testing: Diode/transistor IV characterization
Materials research: Solar cell efficiency testing
Industrial QC: High-precision sensor calibration

Options & Accessories

Optional: High-power module, 4-wire test leads
Software: KickStart automation software

Key Advantages

High precision: NIST-traceable calibration
Versatility: Supports full workflow from R&D to production
User-friendly: Touchscreen operation with remote control

Note: All specifications are subject to change without notice. For latest details, please refer to official Keithley documentation.
