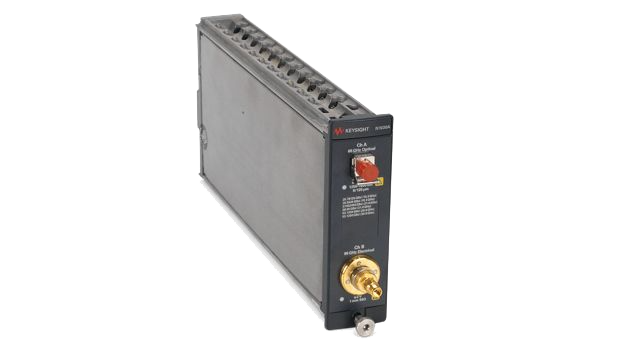

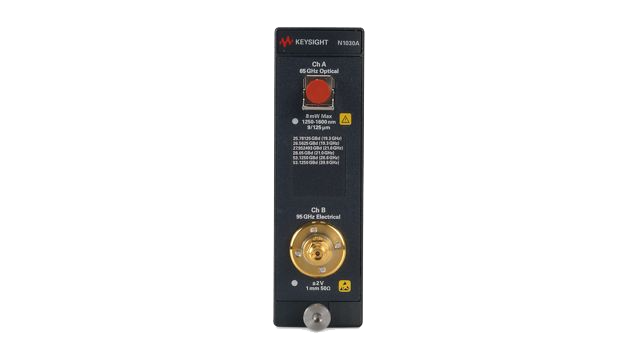

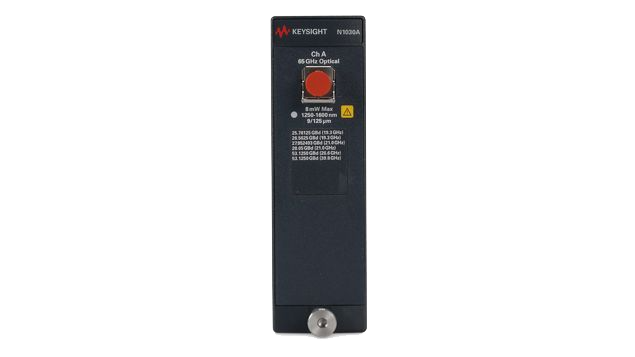

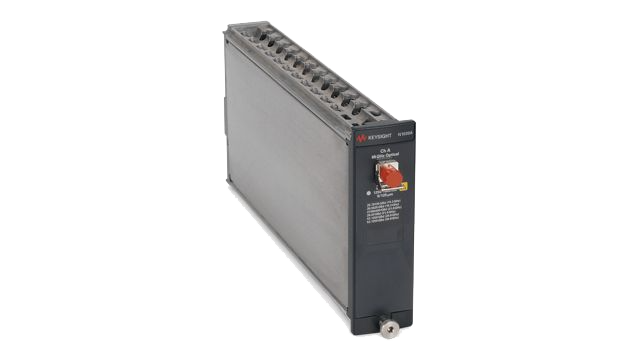

Keysight N1030A Single-Channel Optical Communication Module

Product Overview
The Keysight N1030A is a high-performance single-channel optical communication module designed for precision optical signal analysis. As part of Keysight's industry-leading test and measurement solutions, this module delivers exceptional performance for characterizing optical components and systems in R&D, manufacturing, and quality assurance applications.

Key Features

1. High-Speed Optical Analysis

• Supports data rates up to 32 GBaud, making it ideal for current and emerging optical communication standards

• Features low noise and high sensitivity for accurate measurements of optical signals

2. Precision Optical Interface

• Standard single-mode fiber interface with optional polarization-maintaining fiber support

• Integrated optical power monitoring with ±0.5 dB accuracy

3. Advanced Measurement Capabilities

• Comprehensive optical modulation analysis including NRZ and PAM4 formats

• Built-in chromatic dispersion compensation for long-haul optical link testing

4. Seamless System Integration

• Compatible with Keysight's DCA-X and Infiniium UXR series oscilloscopes

• Supports automated testing through BenchVue software (license included)

5. Robust Design

• Temperature-stabilized optical components ensure measurement stability

• Front-panel status indicators for quick system health monitoring

Typical Applications

• Optical component characterization: Lasers, modulators, and photodetectors

• Coherent communication system development and testing

• Data center interconnect validation for 400G/800G Ethernet

• Optical transceiver module production testing

Technical Specifications

• Wavelength Range: 1260 - 1620 nm

• Optical Bandwidth: 18 GHz typical

• Polarization Dependency: <0.5 dB

• Return Loss: >40 dB

• Power Handling: +10 dBm maximum
